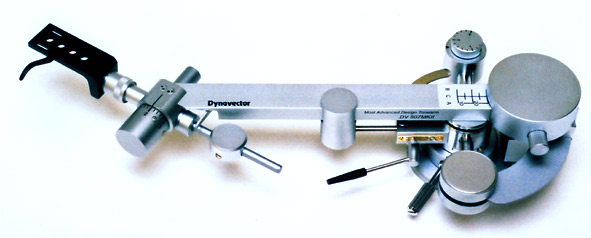

Dynavector DV 507 MkII Tonearm

Description

DV-507 MkII Tonearm
• High precision all stainless steel bearings
• Non-contact electro magnetic damper

As it is a bi-axis inertia controlled tonearm, the DV 507 (no matter which cartridge) can trace the music signal grooves cut in the recording with extreme accuracy.

The DV 507 also provides superb trackability on warped recordings. Azimuth adjustment is now standard. Resolution and musical detailing are quite remarkable.

Type
Bi-Axis inertia controlled Dynamic and Eddy Current Damping Dynamic Balance type tone arm
Overall length
306mm. With head shell: max 326 mm
Effective length
241mm (i.e. tonearm pivot point to cartridge stylus point)
Overhang
15mm
Offset angle
21.5 degree
Height
59mm lifts up to 92mm
Height adjustment range
39mm-72mm at sub arm center
Depth
36mm without connecting cable
Optimum cartridge weight
15-35 grams, including headshell
Horizontal tracking angle error
-1.1 degree – +2.2 degree , 0 degree at inner band of record, 2.2 degree at outside
Tracking force adjustment range
0-38 grams by 0.2 grams step
Sensitivity
Horizontal:less than 50 mgrams, Vertical:less than 40 mgrams
Net weight
1,380 grams
Output connection
5P connector
Headshell connection
EIA standards 4 Pin connector
Accessory
• low resistance (0.025 ohms/m, 50pF/m) high quality arm cord,
• milled aluminium headshell weight 15 grams. Azimuth adjustable.
• mounting template for the arm
• mounting template for headshell
