Description
The Hana EH/EL cartridges have a synthetic Elliptical diamond stylus fitted to a high rigidity aluminum cantilever with cross-shaped armature, offering super transparency and excellent trackability. The body is manufactured from a composite low resonance plastic material in dark green.
This competitively priced Low output moving coil cartridge offers great quality sound referenced against similar priced cartridges.
Click images to enlarge

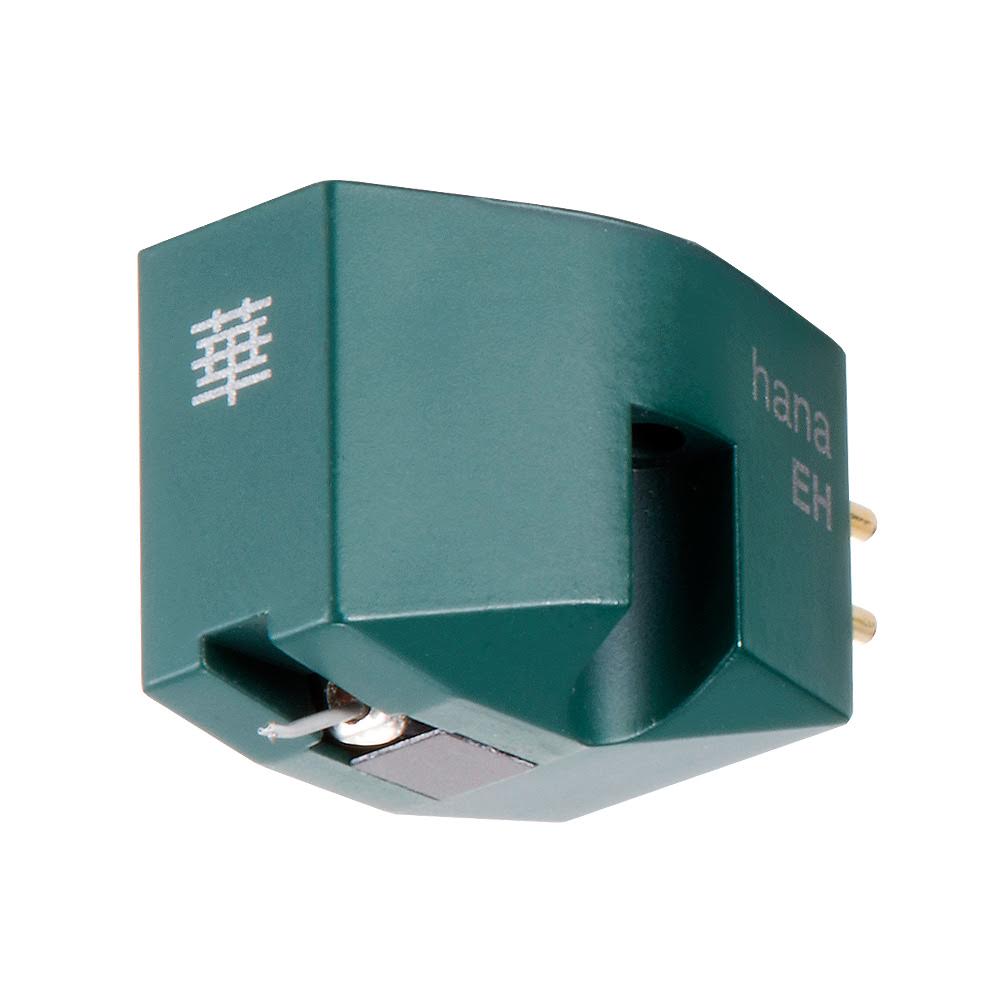

Specifications: High Output Hana EH
Model: Hana EH
Stylus: Synthetic Elliptical
Cantilever: Aluminium
Output Level: 2mV/1kHz
Output Balance: <2dB/1kHz
Vertical Tracking Force: 2 gr.
Trackability: 70µm/2gr.
Channel Separation: 25dB/1kHz
Frequency Response: 15~25,000Hz
Impedance: 130O/1kHz
Suggested Load Impedance: 47kO
Cartridge Weight: 5 gr.
Body Color: Moss Green

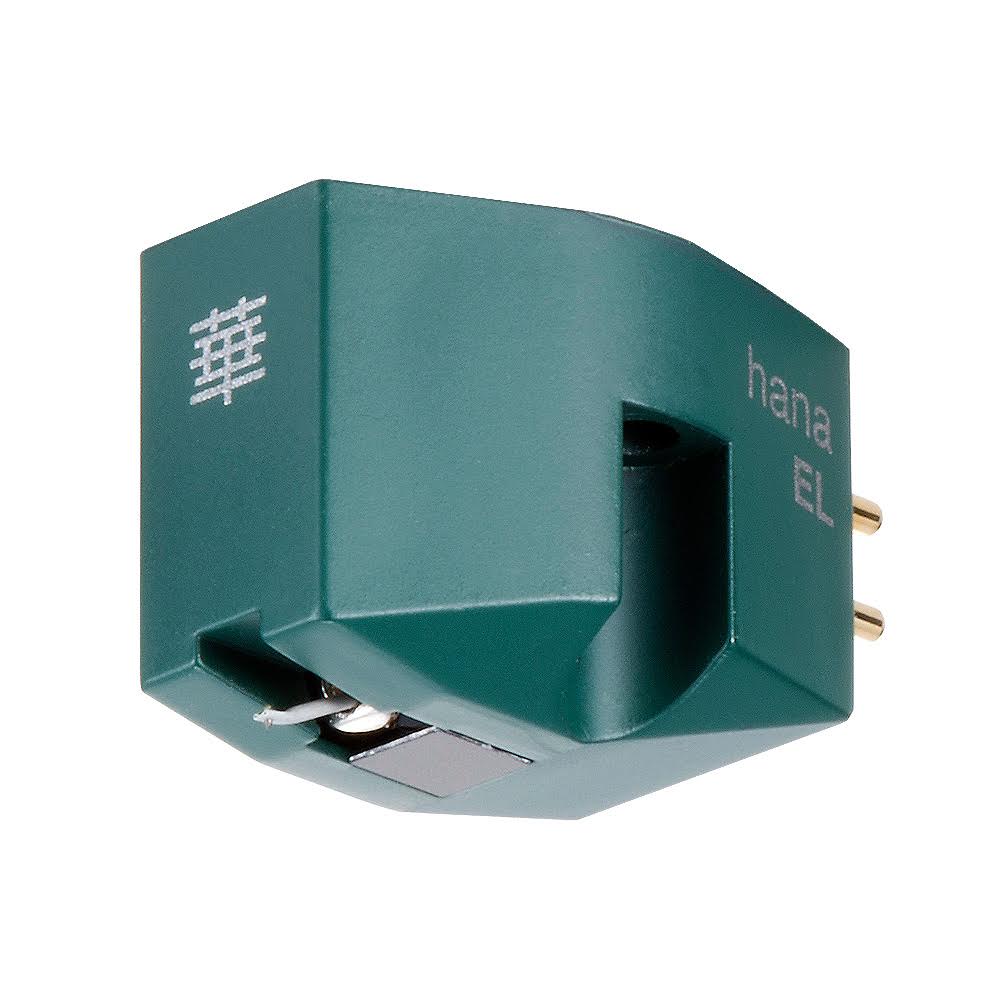

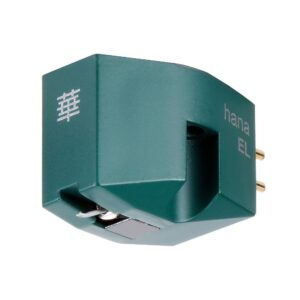

Specifications: Low Output Hana EL
Model: Hana EL
Stylus: Synthetic Elliptical
Cantilever: Aluminium
Output Level: 0.5mV/1kHz
Output Balance: <2dB/1kHz
Vertical Tracking Force: 2 gr.
Trackability: 70µm/2gr.
Channel Separation: 25dB/1kHz
Frequency Response: 15~25,000Hz
Impedance: 30O/1kHz
Suggested Load Impedance: >400O
Cartridge Weight: 5 gr.
Body Color: Moss Green
Read the Hana EH/EL brochure here
