Description
The basic concept has remained unchanged: discrete circuitry that provides flexible gain and loading to maximize the performance of both MM and MC phono cartridges.

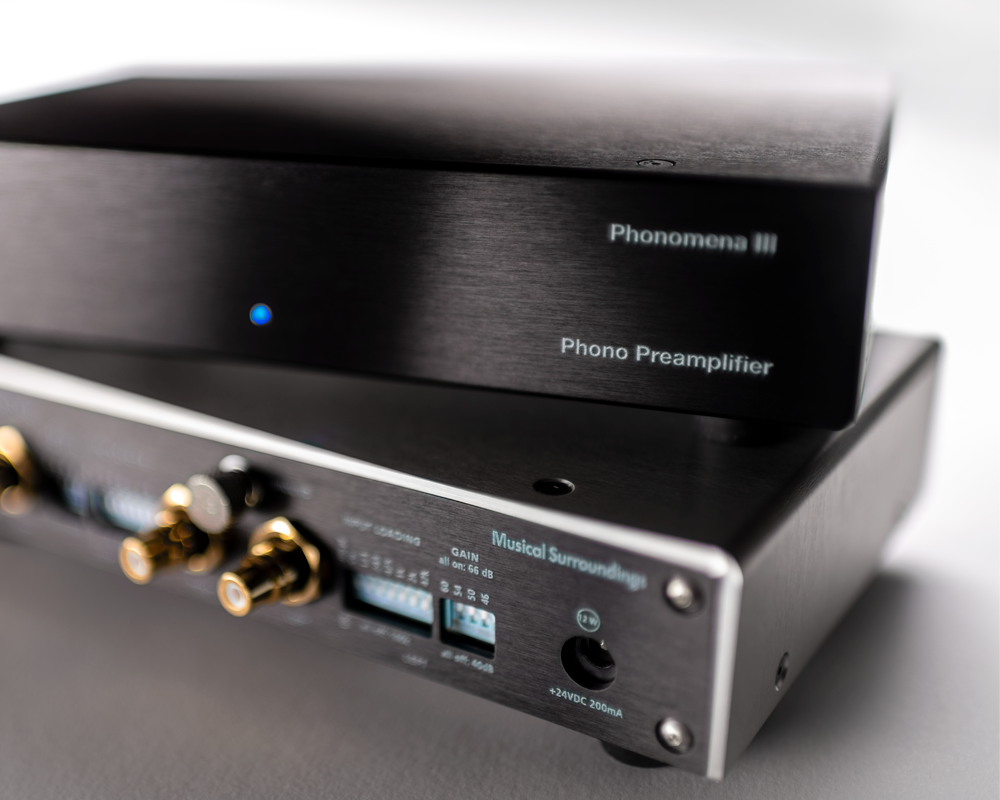

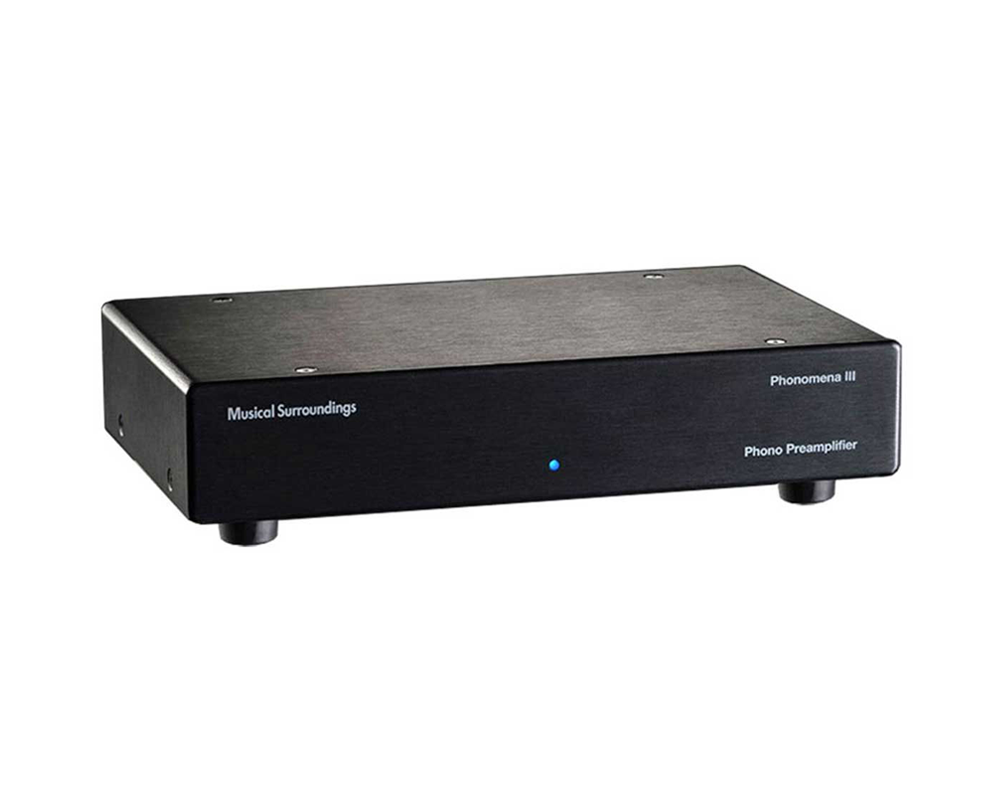

Michael Yee’s newest version is now built in Silicon Valley, California. The Phonomena III, our highest gain phono stage to date, reaches new heights in affordable vinyl playback.
Click image to enlarge
MADE IN CALIFORNIA
MAXIMUM 66DB GAIN
FLEXIBLE GAIN AND LOADING
SUPER MATCHED INPUT TRANSISTORS
NEW IMPROVED DISCRETE CIRCUITRY
OPTIONAL LINEAR POWER SUPPLY
Specifications:
Gain Switches: 40, 46, 49.5, 50, 52, 54, 55.5, 56, 57, 58, 60.5, 61.5, 63, 64, 66
Input Load Switches (Ohms): 30,40, 50, 59, 80, 100, 121, 150, 243, 280, 380, 475, 660, 1000, 2,000, 47k, 100k
Capacitive Loading Switch (pF): 100pF, 200pF
Dimensions: 8.5"w x 6"d x 2"h
Weight: 3lb
Warranty: 3 years with registration
Read the manual here:
phonomena-iii-manual-2023.pdf
Review:
Read Paul Seydor’s TAS review here
